XenApp on vSphere – Citrix User Profiles not removed at Logoff

Ran into an interesting scenario with Citrix Profile Manager running on XenApp 6.5 and vSphere, where user profiles were not deleted at log off.  Below is how I was able to resolve this particular issue.

Environment:

  • Windows 2008 R2
  • XenApp 6.5
  • UPM 4.1
  • vSphere 4.0

Issue:

An additional profile is created on the local system for each user who logs in.  The problem occurs when the Citrix User Profile Manager is installed with the FULL installation of VMware Tools.  There is a conflict with the Shared Folder component of VMware tools that prevents the user profile from being deleted at logoff, this can lead to multiple user profiles on a server, sometimes even resulting in temp profile usage and rarely in profile corruption.

Notes:

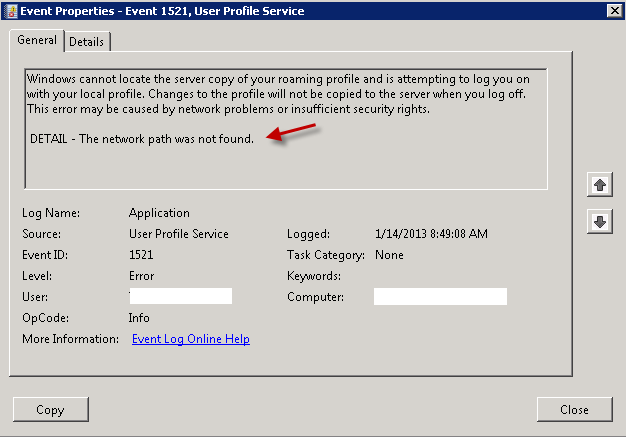

I noticed this was affecting a user where the XenApp server was creating a temp profile and would write the following event, as well as an additional profile was being created on the local system for each user who logged  in.  What the heck?

profile_issue

Cause:

VMware shared folders is locking a folder during logoff.

Solution:

  • Log off of the server sorting the profiles.
  • From Control Panel, go to Add or Remove Programs.
  • Select VMWARE tools and select Modify.
  • Set Shared Folders to Not installed.
  • Restart and log on as Administrator.
  • Navigate to My Computer > Properties > Advanced > User Profiles and delete any remnants of unwanted local profiles.

More info:

* In PVS environments running in Standard mode (read only) vDisks, this issue is less apparent as the profiles are not accumulated through a reboot – Thank you Mr. Soriano (Full Sori) for confirming.

More information:

Advertisements

About CyberRuiz
Highly motivated with over 12 years experience on Citrix/VMWare/Microsoft/technologies. Exceptional communication skills and team player. CCIA – Citrix Certified Integration Architect. CCEA – Citrix Certified Enterprise Administrator. VCP – VMWare Certified Professional in ESX 2.x, VI3, VI4 MCSE – Microsoft Certified Systems Engineer

5 Responses to XenApp on vSphere – Citrix User Profiles not removed at Logoff

  1. Javier says:

    Thank you for this. I noticed many of the profiles we had were not being deleted. I thought it was an issue with the UPM GPO or the roaming profile GPO. It is hard to keep up with all these bugs. Glad there are people out there like you that help other folks out there. Thank you Daniel!

  2. Pingback: User Profiles on your Golden image « Daniel Ruiz – Blog

  3. MasterXen says:

    Do you know if this applies to vSphere 5.0 also?

  4. Mr Mr says:

    this is also affecting our standard-mode-‘PVSed’ servers as we use persistent disk for profile cahce.
