Customize AGEE logon page for NetScaler 10.1 via Rewrite policies

While migrating to Access Gateway on the NetScaler 10.1.  I noticed the rewrite policies I implemented on 9.3 did not work.

While this can be done with some HTML customization, etc, and/or creating your own NetScaler theme, I just wanted to change the logon page by NetScaler Rewrite Policies.

Below are the policies that will allow you to do this.

Environment

  • MPX 8200 NetScaler 10.1: Build 122.17.nc
  • Web Interface 5.3 (Can’t deploy StoreFront here due to custom code we use)

Issue:

When two factor authentication is configured on Access Gateway Enterprise Edition, the user is prompted for User name, Password 1, and Password 2

agee_no_active_pol

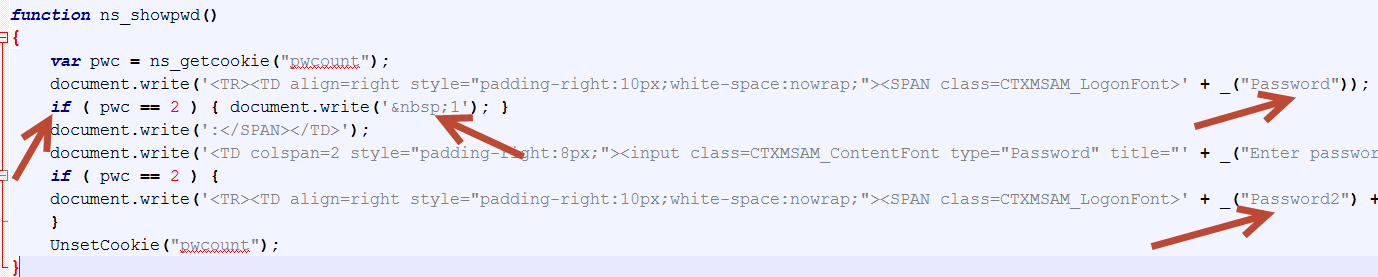

The issue  seems to be due to change in the ‘ns_showpwd’ function on login.js under /var/netscaler/gui/vpn/ as it has been updated from 9.3

ns_showpwd function

ns_showpwd on Login.js





Solution:

1. Create the following actions under “Rewrite/Actions” with putty (no need to go under shell mode)

Rewrite Actions:

add rewrite action AD_agee_delete_rewrite_action delete_all “http.RES.BODY(120000).SET_TEXT_MODE(ignorecase)” -pattern “document.write(\’ 1\’);” -bypassSafetyCheck YES

add rewrite action AD_agee_replace_rewrite_action replace_all “http.RES.BODY(120000).SET_TEXT_MODE(ignorecase)” “\”AD Password\’\”” -pattern “\”Password\”” -bypassSafetyCheck YES -refineSearch q/extend(50,50).REGEX_SELECT(re!e![ ]*\'[ ]*\+[ ]*_\(\”Password\”\)[ ]*!)/

add rewrite action RSA_agee_replace_rewrite_action replace_all “http.RES.BODY(120000).SET_TEXT_MODE(ignorecase)” “\”RSA Code:\’\”” -pattern “\”Password2\”” -bypassSafetyCheck YES -refineSearch q/extend(50,50).REGEX_SELECT(re![ ]*\'[ ]*\+[ ]*_\(\”Password2\”\)[ ]*!)/

Rewrite Policies:

add rewrite policy AD_agee_rewrite_pol “http.req.url.path.endswith(\”vpn/login.js\”)” AD_agee_replace_rewrite_action

add rewrite policy RSA_agee_rewrite_pol “http.req.url.path.endswith(\”vpn/login.js\”)” RSA_agee_replace_rewrite_action

add rewrite policy AD_agee_delete_pol “http.req.url.path.endswith(\”vpn/login.js\”)” AD_agee_delete_rewrite_action

Bind the policies:

bind rewrite global AD_agee_rewrite_pol 100 NEXT -type RES_OVERRIDE

bind rewrite global RSA_agee_rewrite_pol 110 NEXT -type RES_OVERRIDE

bind rewrite global AD_agee_delete_pol 120 NEXT -type RES_OVERRIDE

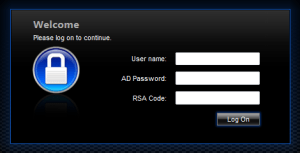

Result:

Responder Policy AGEE 10.1

Responder Policy AGEE 10.1

Advertisements

About CyberRuiz
Highly motivated with over 12 years experience on Citrix/VMWare/Microsoft/technologies. Exceptional communication skills and team player. CCIA – Citrix Certified Integration Architect. CCEA – Citrix Certified Enterprise Administrator. VCP – VMWare Certified Professional in ESX 2.x, VI3, VI4 MCSE – Microsoft Certified Systems Engineer

7 Responses to Customize AGEE logon page for NetScaler 10.1 via Rewrite policies

  1. Javier Citrix Guru says:

    This honestly just saved my @$$

    Thank you Daniel!!!

  2. Karl says:

    I’m getting a syntax error for the expression in the -refineSearch parameter. I dropped this part, and added the rewrite action via putty. Then I went into the GUI and pasted:

    q/extend(50,50).REGEX_SELECT(re!e![ ]*\'[ ]*\+[ ]*_\(\”Password\”\)[ ]*!)/

    Get a syntax error in the GUI as well. Any help?

    Thanks for this post. It is exactly what I need to do.

    • CyberRuiz says:

      Karl,
      Thanks for visiting my blog.
      I assume you are referring to the “AD_agee_replace_rewrite_action”?
      If so if you create it manually, type the following under the “Refine Search”

      extend(50,50).REGEX_SELECT(re![ ]*\'[ ]*\+[ ]*_\(\"Password\"\)[ ]*!)

  3. Shane says:

    Great write up. Seeing my policy hits increase but the wording on the screen hasn’t changed. Running 10.5.54.9 if that makes a difference. The one thing that I had a problem with in your site was copying the code, it was pasting in special character formatting. So I just typed it all. But still, Ive gone through and it all matches.
