NetScaler AGEE 9.3 – Customize logon page via NetScaler rewrite policies

While working on a new project at a new company, we made the decision of utilizing the Access Gateway on the NetScaler to host a new client’s site as the XenApp entry point. Although it is clear on the benefits that AGEE brings, we can agree that it also brings a bit of complexity when customizing the log on page.

While this can be done with some HTML customizations, Citrix does not provide support for an AGEE customized site, so I figure this time I would look into NetScaler rewrite policies to accomplish the same.

Environment

  • MPX 7500 NetScaler 9.3 52.3nc
  • Web Interface 5.3 (I know :P)

Issue:

When two factor authentication is configured on Access Gateway Enterprise Edition, the user is prompted for User name, Password 1, and Password 2.

agee_no_active_pol

Solution:

1. Create the following actions under “Rewrite/Actions”

add rewrite action AD_replace_rewrite_action replace_all “http.RES.BODY(120000).SET_TEXT_MODE(ignorecase)” “\”AD Password\’\”” -pattern “\”Password\”” -bypassSafetyCheck YES -refineSearch q/extend(50,50).REGEX_SELECT(re![ ]*\'[ ]*\+[ ]*_\(\”Password\”\)[ ]*!)/

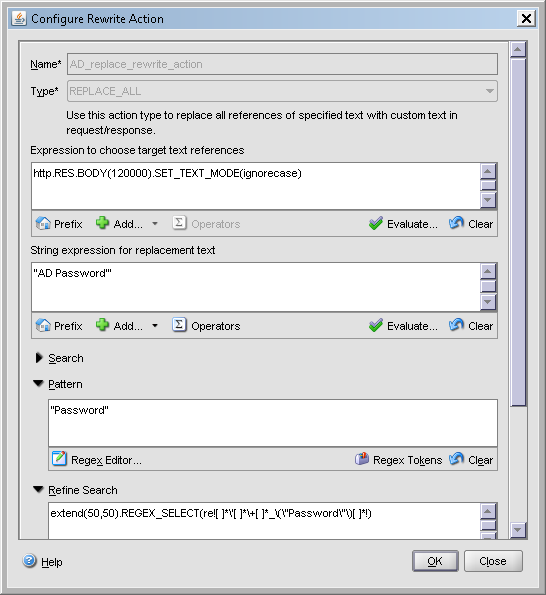

01_AD_replace_rewrite_action

add rewrite action RSA_replace_rewrite_action replace_all “http.RES.BODY(120000).SET_TEXT_MODE(ignorecase)” “\”RSA Password:\”” -pattern “\”Password2\”” -bypassSafetyCheck YES -refineSearch q/extend(20,50).REGEX_SELECT(re![ ]*\'[ ]*\+[ ]*\_\(\”Password2\”\)[ ]*\+[ ]*\’!)/

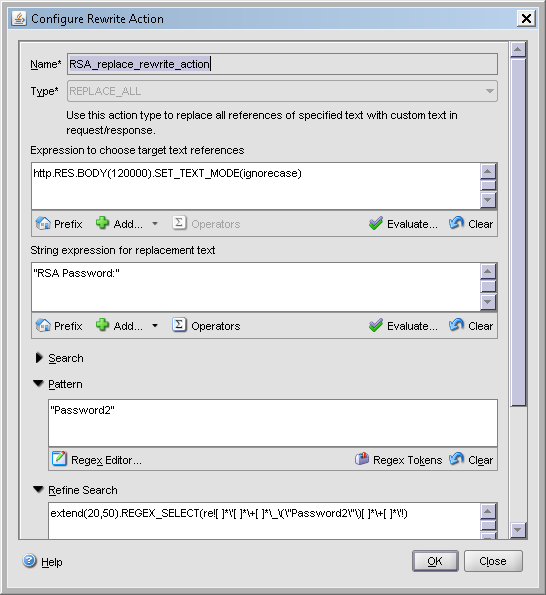

02_RSA_replace_rewrite_action

add rewrite action AD_delete_rewrite_action delete_all “http.RES.BODY(120000).SET_TEXT_MODE(ignorecase)” -pattern “document.write(\’ 1\’);” -bypassSafetyCheck YES

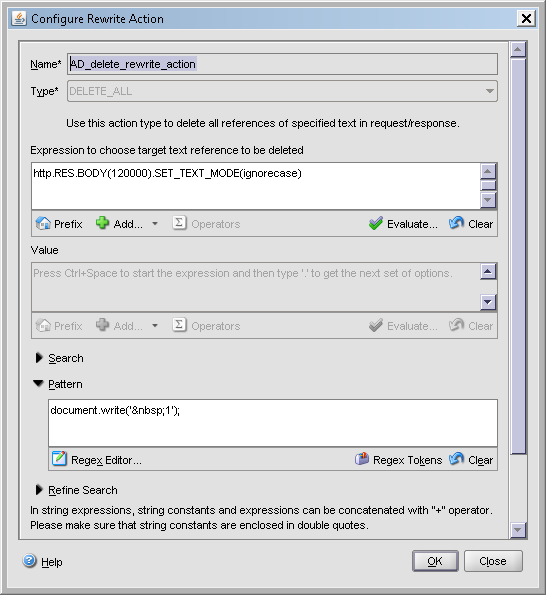

03_AD_delete_rewrite_action

2. Create the following policies under “Rewrite/Policies”

add rewrite policy AD_rewrite_pol “http.req.url.path.endswith(\”vpn/login.js\”)” AD_replace_rewrite_action

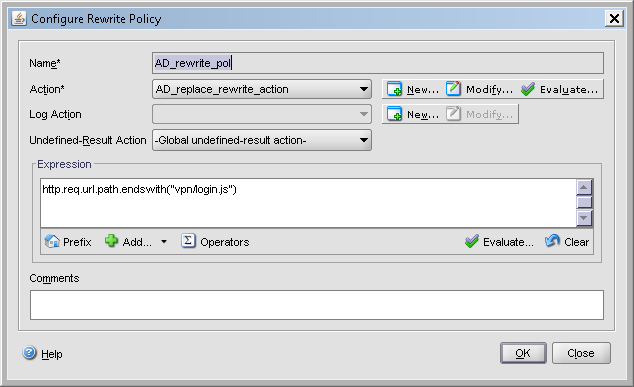

01_AD_rewrite_pol

add rewrite policy RSA_rewrite_pol “http.req.url.path.endswith(\”vpn/login.js\”)” RSA_replace_rewrite_action

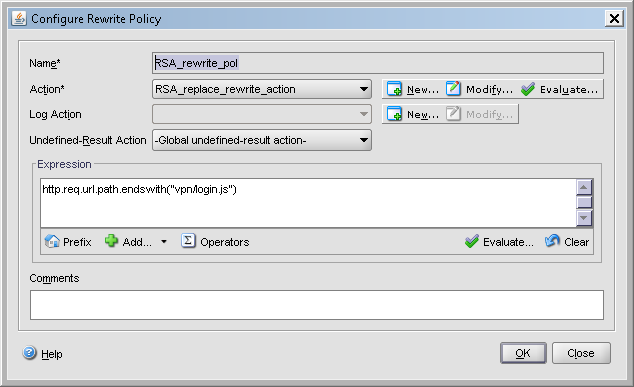

02_RSA_rewrite_pol

add rewrite policy AD_delete_pol “http.req.url.path.endswith(\”vpn/login.js\”)” AD_delete_rewrite_action

03_AD_delete_pol

3. Enable/Bind the policies

bind rewrite global AD_rewrite_pol 80 NEXT -type RES_OVERRIDE

bind rewrite global RSA_rewrite_pol 90 NEXT -type RES_OVERRIDE

bind rewrite global AD_delete_pol 100 NEXT -type RES_OVERRIDE

enable_pol

Result?

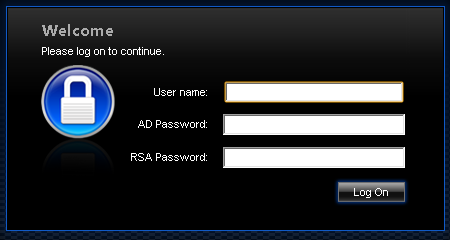

agee_with_active_pol

For the logo… head over to this CTX article , note that you can copy the customized version of the logon page to a new directory of the appliance, however you will need to edit the rc.netscaler script to copy the required files to the /netscaler/ns_gui/vpn/ directory every time the appliance restarts, if not the changes are gone.

The rc.netscaler script would look something like this…, however a reminder that Citrix does not support this with version 9.3, and with version 10 71.6014.e, they added templates

cp /flash/nsconfig/mod_cag/index.html /netscaler/ns_gui/vpn/index.html
cp /flash/nsconfig/mod_cag/login.js /netscaler/ns_gui/vpn/login.js
cp /flash/nsconfig/mod_cag/images/ctxHeader01.gif /netscaler/ns_gui/vpn/images/ctxHeader01.gif

Advertisements

About CyberRuiz
Highly motivated with over 12 years experience on Citrix/VMWare/Microsoft/technologies. Exceptional communication skills and team player. CCIA – Citrix Certified Integration Architect. CCEA – Citrix Certified Enterprise Administrator. VCP – VMWare Certified Professional in ESX 2.x, VI3, VI4 MCSE – Microsoft Certified Systems Engineer

8 Responses to NetScaler AGEE 9.3 – Customize logon page via NetScaler rewrite policies

  1. Javier says:

    Great! Thanks for the post.

  2. Martijn Hoogenbosch says:

    I’m using Netscaler 10.75.7 but can’t seem to get it to work. It simply doesn’t do anything. Can it be it only works in 9.3 series?

    • Martijn Hoogenbosch says:

      There indeed is a difference between 9.x and 10.x. Ive got it working now. Tnx for head startes.

  3. John Billekens says:

    For 10.x and higher:

    add rewrite action AD_delete_rewrite_action delete_all “http.RES.BODY(120000).SET_TEXT_MODE(ignorecase)” -pattern “document.write(\’ 1\’);” -bypassSafetyCheck YES
    add rewrite action AD_replace_rewrite_action replace_all “http.RES.BODY(120000).SET_TEXT_MODE(ignorecase)” “\”AD Password\’\”” -pattern “\”Password\”” -bypassSafetyCheck YES -refineSearch q/extend(50,50).REGEX_SELECT(re![ ]*\'[ ]*\+[ ]*_\(\”Password\”\)[ ]*!)/
    add rewrite action RSA_replace_rewrite_action replace_all “http.RES.BODY(120000).SET_TEXT_MODE(ignorecase)” “\”Secure token:\’\”” -pattern “\”Password2\”” -bypassSafetyCheck YES -refineSearch q/extend(50,50).REGEX_SELECT(re![ ]*\'[ ]*\+[ ]*_\(\”Password2\”\)[ ]*!)/
    add rewrite policy AD_rewrite_pol “http.req.url.path.endswith(\”vpn/login.js\”)” AD_replace_rewrite_action
    add rewrite policy RSA_rewrite_pol “http.req.url.path.endswith(\”vpn/login.js\”)” RSA_replace_rewrite_action
    add rewrite policy AD_delete_pol “http.req.url.path.endswith(\”vpn/login.js\”)” AD_delete_rewrite_action
    bind rewrite global AD_rewrite_pol 100 NEXT -type RES_OVERRIDE
    bind rewrite global RSA_rewrite_pol 110 NEXT -type RES_OVERRIDE
    bind rewrite global AD_delete_pol 120 NEXT -type RES_OVERRIDE

  4. Hi, is it possible to completely remove the second password box with a rewrite policy ? We use Radius authentication and need to also use LDAP for password change possibility and we dont have any use for the second password box.

  5. mrjlturner says:

    @John we just tested this on v10.1.121.10 and its a no-go 😦 Not fluent on rewrite…so any help would be awesome.
